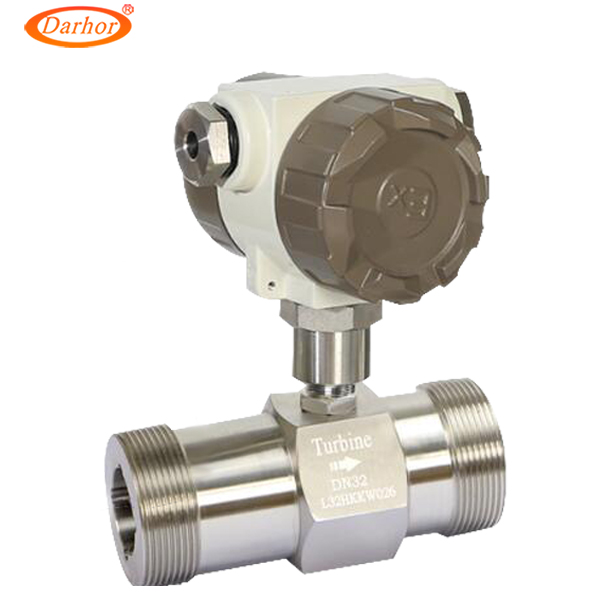

DH501-N Pulse output turbine meter

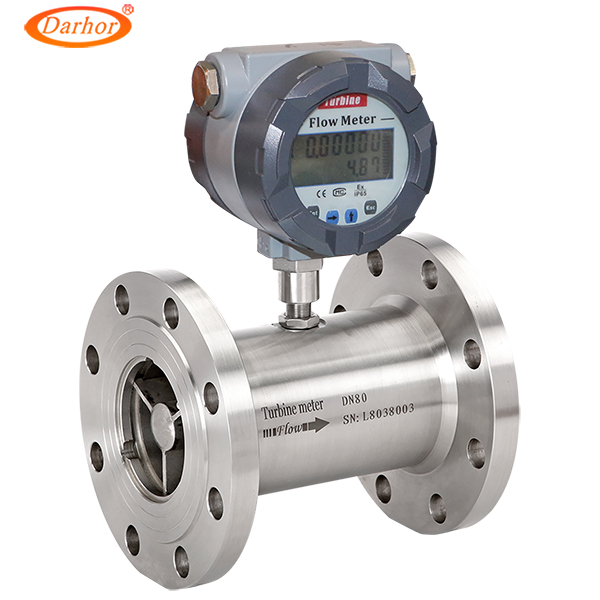

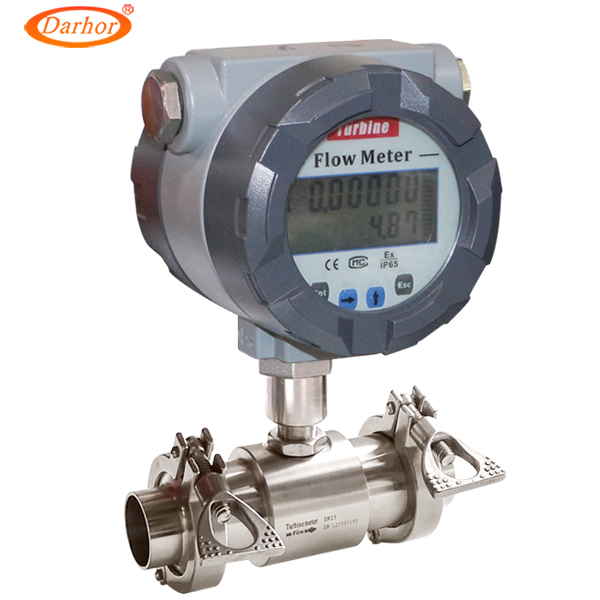

DH 500 Turbine flowmeter

Model DH500-C1 turbine flow transducer adapts to measure the liquid rate and total flowrate of low viscosity.
It can be widely used in the fields ofpetrol,chemical industry,metallurgy,scientific research for measuring or control.
Several output and display methods can be selected.


Performance

Repeatability: ±0.2%

Accuracy: Standard: ±1% of reading;

Optional: ±0.5% of reading



Wetted Components

Housing: Standard - 304 Stainless Steel

Optional - 316 Stainless Steel

Bearings and Shaft: Tungsten Carbide

Rotor: Standard - 2Cr13 Stainless Steel

(Optional Alloy CD4Mcu)

Retaining Rings: 316 Stainless Steel

Spectrum 2*,4*,6,10,15,25,40,50,80,100,150,200,250,300mm

Output Signal: (Where applicable)

Transmitter: 4 to 20 mA DC current signal

Signal Transmission Distance: ≤1,000 m

Basic Type: Hausman Connector or three-core cable

Explosion Proof Type: ISO M20×1.5 Female

Standard: None

Optional: ExdIIBT6

Protection Level: IP65



Specification



DN

(mm)

Flow range (m3/h)

Medium temp.

 ()

PN

(MPa)

Env. Temp.

 ()

Ppressure loss

 (MPa)

Error 0.2%*

Error 0.5%*

Error 1.0%*

Min

Max

Min

Max

Min

Max

2A*









0.03

0.16

-20

+120

(150*)

6.3

-25


+55

0.12

4A*









0.04

0.25

6A









0.1

0.6

6.3

16*

25*

40*

0.08

10A









0.2

1.2

0.05

15A





0.6

4

0.6

6

0.035

25A





1.6

10

1

10

40A

3

20

3

20

2

20

2.5

0.025

50A

6

40

6

40

4

40

80A

16

100

16

100

10

100

100A

25

160

25

160

20

200

1.6
OR
2.5

150A

60

400

50

300

40

400

200A





100

600

80

800

250A





160

1000

120

1200

1.6

300A





260

1600

180

1800
