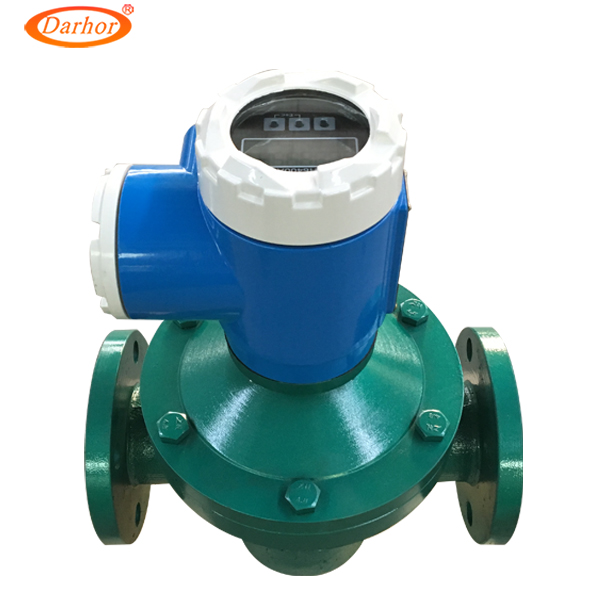

DH900 Oval gear flow meter
Darhor oval gear flow meter, fuel oil flowmeter
Only Two Moving Parts
Higher Accuracy, 0.5% or 0.2%.
Standard Viscosity up to 5,000 cP (Centipoises = mPa.s).
Size of wide flow ranges 0.04-340 M3/h (18-37,396GPM).
Wide range of working environment –20 ~ +280 Deg C
Technical Specification:
| Discharge rate of each revolution | 0.5L |
| Flow range | 5-100L/min |
| Working pressure | 0.12MPa-0.35MPa |
| Accuracy | ±0.2%(5L/min-100L/min) |
| Repeat error | ≤0.1% |
| Working life | ≥10000000L |
