DH800 Vortex flowmter

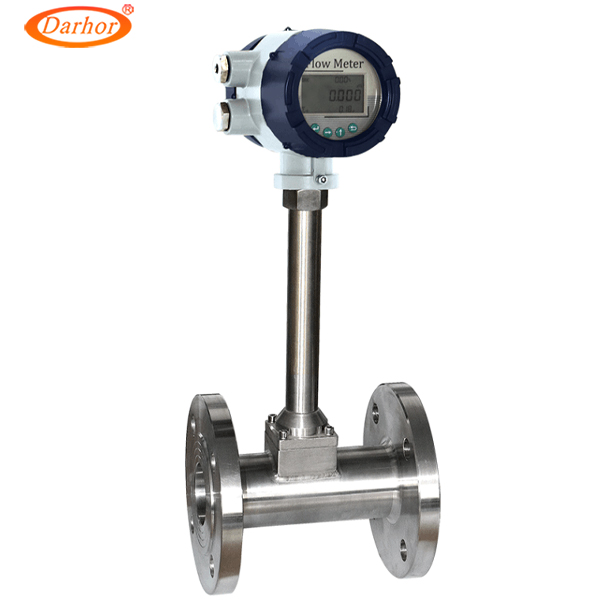

DH800 series vortex flow meter pulse output
Vortex flow meter is mainly used for measuring flow of industrial pipeline fluid, such as gas, liquid and steam, etc. It has little pressure loss, broad span range and high accuracy. It is not under influence of density, pressure, temperature and viscosity when measuring volumetric flow. It has no movable mechanical parts with high reliability and little mainten
- Inline mass vortex air flow meter
- Read five process variables with a single device
- Precisely measure any gas, liquid or steam
- Fully field-programmable
Specifications:
|
flow meter |
Instruction |
||||||||||
|
Model DH VF series |
|||||||||||
|
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
||
|
Karman Vortex Street |
|||||||||||
|
DH-VF |
Stress Type Testing |
||||||||||
|
Measuring Ways |
1 |
Flange connection(GB9119-2000) |
|||||||||
|
2 |
Clamp flange(equip with flange and bolts in factory) |
||||||||||
|
Medium |
1 |
Both for gas and liquid |
|||||||||
|
2 |
Liquid |
||||||||||
|
3 |
Gas |
||||||||||
|
4 |
Steam |
||||||||||
|
Diameter |
2 |
DN25 |
|||||||||
|
4 |
DN40 |
||||||||||
|
5 |
DN50 |
||||||||||
|
8 |
DN80 |
||||||||||
|
10 |
DN100 |
||||||||||
|
15 |
DN150 |
||||||||||
|
20 |
DN200 |
||||||||||
|
25 |
DN250 |
||||||||||
|
30 |
DN300 |
||||||||||
|
Operation Condition |
Blank |
Normal Type |
|||||||||
|
B |
Intrinsic safety,iaIICT6 |
||||||||||
|
Signal Output |
P |
Voltage pulse, 24V power |
Hand operator and digital control meter is optional |
||||||||
|
S |
Pulse,4~20mA, on-site,24V power |
Optional Input ports:HART,temp.(PT100),pressure sensor,pressure transmitter |
|||||||||
|
D |
On-site,without any display,lithium battery |
Without any input ports |
|||||||||
|
Structure |
F |
Separated Type |
|||||||||
|
Z |
Integrated Type |
||||||||||
