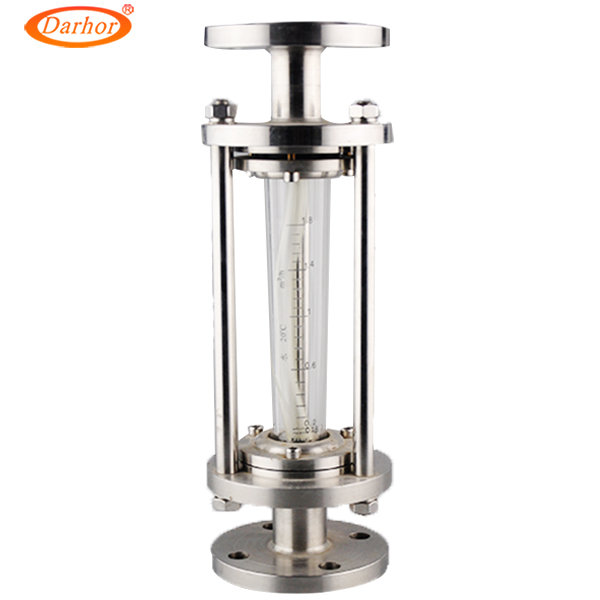

FA40VA40 series glass rotameter
FA40VA40 series glass tube flowmeter rotameter, rotameters
The series of glass rotor flowmeter is an intergrated product by cone-shaped glass tube,
Float, flanges. The installation is easy and the flowmeter is adjustable, the flowmeter is used
In ranges such as semi-conductor chemicals ect.
1) Accuracy: +/- 6%FS
2) Duplicate accuracy: +/- 0.25%FS
3) Range ration: 10;1
4) Maximum pressure: 0.2Mp
5) Maximum temperature:60C
6) Body material: glass
7)tube material: glass
8) Fixed screw material: H62( copper)
9) Tube connection material: ABS or PVC or GRASS
10) Upper and lower adapter bearing: F46
11) O-ring: Silicon Rubber or Fluorin Rubber or Butyl
|
DN |
Flow Range |
Pressure(Mpa) |
|
|
Water(L/h) |
Air(NL/min) |
||
|
15 |
30-300 |
10-100 |
≤0.8 |
|
60-600 |
20-200 |
||
|
80-800 |
25-250 |
||
|
20 |
90-900 |
20-200 |
|
|
120-1200 |
30-300 |
||
|
180-1800 |
50-500 |
||
|
25 |
180-1800 |
50-500 |
|
|
300-3000 |
100-1000 |
||
|
480-4800 |
150-1500 |
||
|
32 |
480-4800 |
200-2000 |
≤0.6 |
|
600-6000 |
250-2500 |
||
|
720-7200 |
300-3000 |
||
|
40 |
1-10m³/h |
18-180Nm³/h |
|
|
1.2-12m³/h |
20-200Nm³/h |
||
|
1.5-15m³/h |
25-250Nm³/h |
||
|
50 |
1.2-12m³/h |
20-200Nm³/h |
|
|
1.5-15m³/h |
25-250Nm³/h |
||
|
1.8-18m³/h |
30-300Nm³/h |
||
|
65 |
1.8-18m³/h |
25-250Nm³/h |
≤0.4 |
|
3-30m³/h |
35-350Nm³/h |
||
|
4-40m³/h |
40-400Nm³/h |
||
|
80 |
4-40m³/h |
40-400Nm³/h |
|
|
5-50m³/h |
50-500Nm³/h |
||
|
6-60m³/h |
60-600Nm³/h |
||
|
100 |
6-60m³/h |
60-600Nm³/h |
|
|
7-70m³/h |
70-700Nm³/h |
||
|
10-100m³/h |
90-900Nm³/h |
||
|
|
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
|
L |
260 |
340 |
340 |
340 |
340 |
340 |
390 |
390 |
410 |
|
D |
150 |
200 |
200 |
200 |
200 |
200 |
250 |
250 |
250 |
|
H |
95 |
105 |
115 |
135 |
150 |
160 |
180 |
185 |
205 |
|
d |
65 |
75 |
85 |
100 |
110 |
125 |
145 |
150 |
170 |
|
f |
14 |
14 |
14 |
14 |
14 |
14 |
14 |
18 |
18 |
