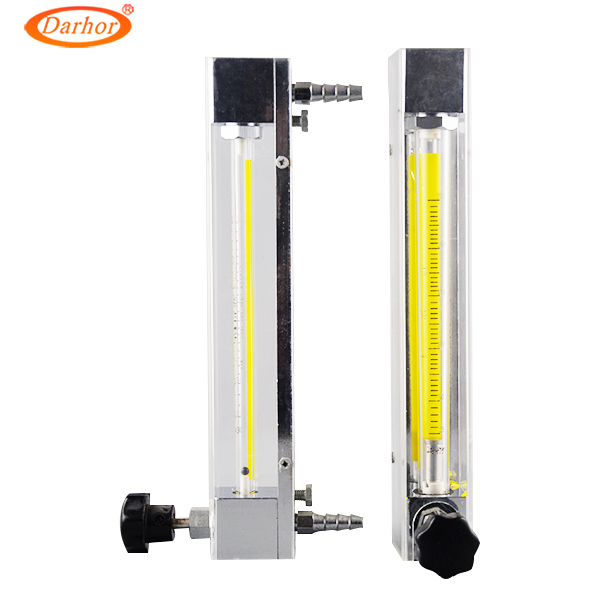

LZB-3,4,6,10 glass tube rotameter
LZB glass tube flow meter
The material of the corrosion resistant flow meters parts that contacts the medium
are as follows: the glass tube is made of high boron silicon glass, float and leader are covered
with PTPE, and the seal ring is F46 ring. For the corrosion resistant flow meter whose diameter
is less than 10mm,the material of the base is stainless steel and the seal material is fluorine rubber.
Chemical resistance rotameter:
|
Model |
A |
B |
C |
D |
E |
F |
|
LZB-3 |
|
116 |
136 |
Φ8 |
26x25 |
|
|
LZB-4 |
178 |
204 |
234 |
Φ9 |
39.5x34 |
2-M6 |
|
LZB-6 |
178 |
204 |
234 |
Φ9 |
39.5x34 |
2-M6 |
|
LZB-10 |
178 |
208 |
238 |
Φ12 |
39.5x34 |
2-M6 |
Technical Parameters of LZB-series Glass Rotameter Type Flow Meter:
|
Model |
LZB-3 |
LZB-4 |
LZB-6 |
LZB-10 |
|
|
Diameter (mm) |
Φ3 |
Φ4 |
Φ6 |
Φ10 |
|
|
Measure Range
|
Liquid I/h |
2.5-25ml/min |
1-10 |
1-10 |
6-60 |
|
4-40ml/min |
1.6-16 |
100-800ml/min |
10-100 |
||
|
6-60ml/min |
4-40 |
||||
|
10-80ml/min |
2.5-25 |
10-100 |
16-160 |
||
|
10-100ml/min |
3.6-36 |
6-60 |
25-250 |
||
|
Gas Nm3/h |
0.03-0.3l/min |
0.2-2.5l/min |
0.04-0.4 |
0.1-1 |
|
|
0.06-0.6l/min |
0.16-1.6 |
||||
|
0.1-1l/min |
0.016-0.16 |
0.06-0.6 |
0.25-2.5 |
||
|
0.15-1.5l/min |
0.025-0.25 |
1-10 l/min |
5-50 l/min |
||
|
0-100l/h |
0.04-0.4 |
0.1-1 |
0.5-5l/min |
||
|
0.3-3l/h |
|
|
0.6-6 |
||
|
|
|
|
0.6-7 |
||
|
Accuracy +%
|
4\6 |
2.5\4 |
2.5 |
2.5 |
|
|
Mpa Working Pressure |
≤0.6 |
≤1 |
≤1 |
≤1 |
|
