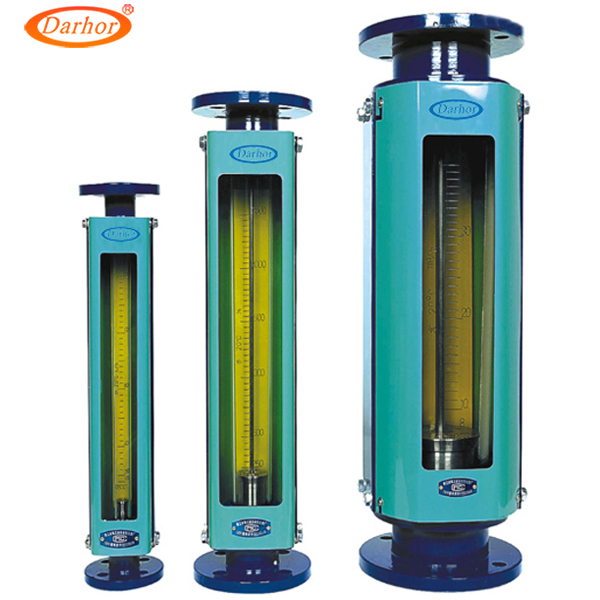

LZB-F rotameter glass tube
LZB-F rotameter glass tubeThe material of the corrosion resistant flow meters parts that contacts the medium are as
follows: the glass tube is made of high boron silicon glass, float and leader are covered with PTPE,
and the seal ring is F46 ring.
Technical Parameters of LZB-F Series Flow meter
|
Model |
LZB-15F |
LZS-25F |
LZB-40F |
LZB-50F |
LZB-80F |
LZB-100F |
|||
|
Diameter (mm) |
15 |
25 |
40 |
50 |
80 |
100 |
|||
|
Measure Range |
Liquid
l/h |
16-160 |
40-400 |
160-1600 |
400-4000 |
1-10 m3/h |
5-25 m3/h |
||
|
25-250 |
60-600 |
250-2500 |
600-6000 |
1.6-16 m3/h |
8-40 m3/h |
||||
|
40-400 |
100-1000 |
|
|
|
|
||||
|
Gas
Nm3/h |
0.25-2.5 |
1-10 |
4-40 |
10-100 |
50-250 |
120-600 |
|||
|
0.4-4 |
1.6-16 |
6-20 |
16-160 |
80-400 |
200-1000 |
||||
|
0.6-6 |
2.5-25 |
|
|
|
|
||||
|
Accuracy(±%) |
4 |
2.5 |
2.5 |
2.5 |
2.5 |
2.5 |
|||
|
Working Pressure |
≤0.6 |
≤0.6 |
≤0.6 |
≤0.6 |
≤0.4 |
|
|
||
