VA30 glass tube small flow flow meter
VA30 glass tube small flow flow meter

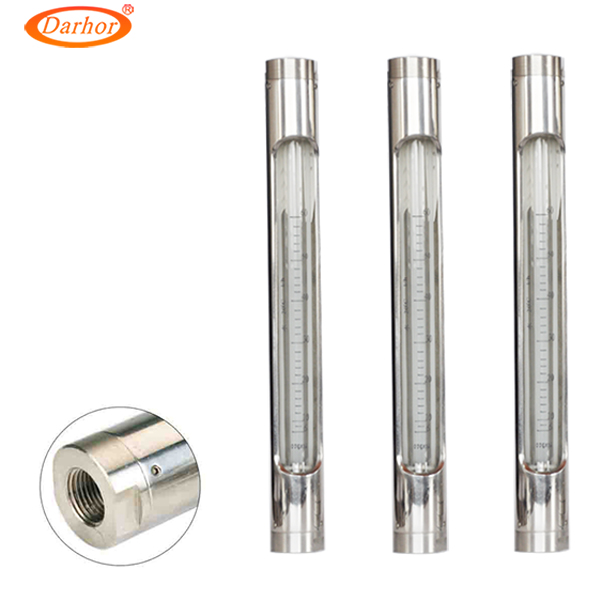

VA30S glass rotameter are the new products of our company, compared with the other
domestic products of the same type, it has advantages of high measuring precision, good
interchangeability, multiple connection ways, especially the value of flow rate of the flow
meter is in millimeter scale mark, which is capable of providing actual flow scale according
to the temperature, pressure, density, and viscosity of different flows, solving theproblem of
indication correction.
Specification:
|
DN (mm) |
Model |
Measure Range |
Tube Length(mm) |
Working Pressure(Bar) |
Temp. |
|
|
Water (L/h) |
Air (m3/h) |
|||||
|
15 |
VA30S-15 FA30S-15 |
4-40 6-60 10-100 16-160 25-250 40-400 63-630 |
0.12-1.2 0.3-3 0.5-5 0.8-8 1.2-12 2-20 |
300 |
≤1.0 |
-20°C~200°C |
|
25 |
VA30S-25 VA30S-25 |
63-630 100-1000 160-1600 250-2500 |
2-20 3-30 5-50 8-80 |
≤1.0 |
||
|
40 |
VA30S-40 FA30S-40 |
160-1600 250-2500 400-4000 |
5-50 8-80 12-120 |
≤0.9 |
||
|
50 |
VA30S-50 FA30S-50 |
400-4000 630-6300 1000-10000 4000-16000 |
12-120 20-200 30-300 |
≤0.7 |
||
