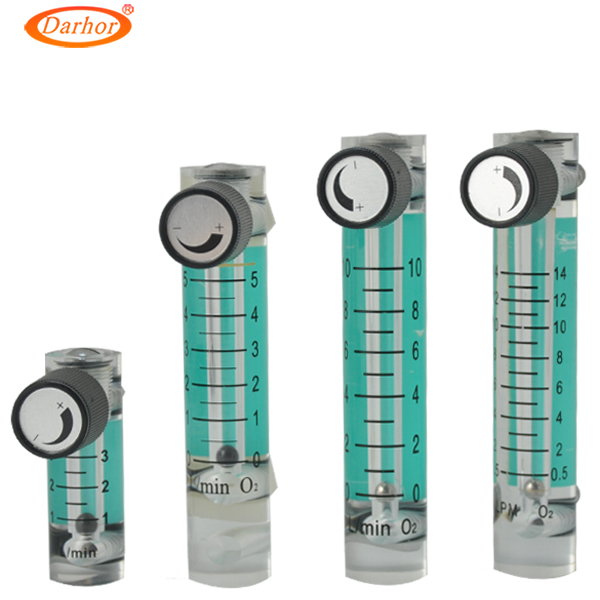

Oxygen flowmeter
DF-6T O2 series flow meter which is made of Acrylic., is used to measure the single-phase
non-pulsating flux of liquid or gas. It is featured in beautiful look, ow weight and long life span.
The outline size of DF-6T O2
Series flow meter
|
Model |
|
Measure Range I/min |
Connection type |
accuracy |
Size(mm) |
|||||||
|
DF-6TO2 |
1 |
1-3 |
tube |
±5% |
A |
B |
C |
D |
E |
F |
G |
H |
|
2 |
1-5 |
60 |
20 |
21 (or) 19 |
40 |
M10X1 (or) 9/16-18 |
8 |
22 |
8 |
|||
|
3 |
0-5 0-9 0-10 |
72 |
20 |
55 |
7 |
22 |
7 |
|||||
|
4 |
1-5 0-6 |
93 |
20 |
70 |
10 |
22 |
8 |
|||||
|
5 |
0-5 0.1-1 2-10 0.5-14 4-25 0-1000cc/min |
96 |
20 |
70 |
13 |
22 |
8 |
|||||
|
6 |
1-5 0.5-10 2-10 |
106 |
20 |
80 |
13 |
22 |
8 |
|||||
|
7 |
0-5 1-5 2-10 0.5-14 |
108 |
20 |
70 |
25 |
22 |
8 |
|||||
|
115.5 |
20 |
90 |
13 |
22 |
8 |
|||||||
The material and code of the parts of DF-6T O2
|
With value |
Value |
Fitting |
Float |
O-ring |
|
T- with O- No |
Brass Ss |
1. Brass 2. Brass chromeplate 3. Ss 4. POM Plasti POM |
Agate ball Ss ball |
1- Fluorin rubber 2- Butyl |
