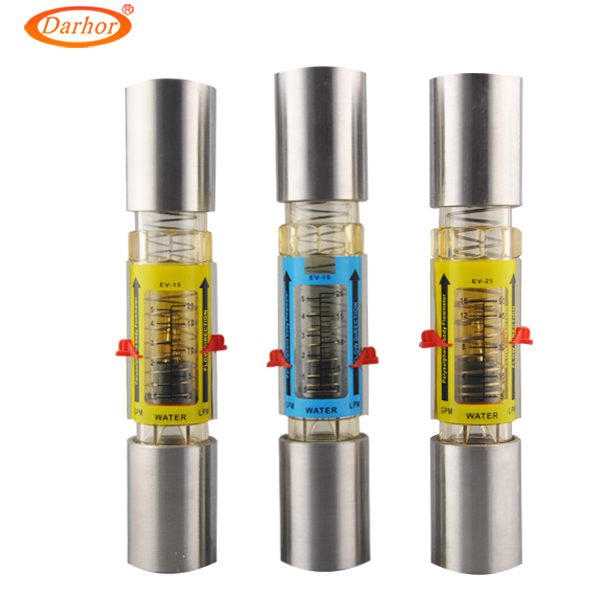

EV series heland type high temperature flow meter
EV series heland type high temperature flow meter
The EV Flow Meter is a variable area instrument. A precision molded, sharpedged Orifice,
located within the Piston Assembly, forms an annular opening with the Metering Cone.
Flow through the meter creates a pressure differential across the sharp-edged orifice,
moving the piston against the Spring.
The unique spring loaded design allows meters to be installed in any position without
effecting accuracy. It can be installed into horizontal or vertical lines, or with an optional
inverted flow scale, this meter can monitor flow in a downward flowing line.
|
Model |
Measuring Range |
|
|
|||
|
|
WATER 20C |
AIR 20C |
Thread NPT BSPT BSP |
Material |
||
|
GPM |
LPM |
GPM |
LPS |
|||
|
EV- 15 20 25 |
0.5-5 1-7 1-10 1-16 3-18 4-28 |
2-20 4-26 4-35 5-60 15-65 20-100 |
80-320 160-480 240-720 320-1100 480-1250 550-1750 |
5-20 10-30 15-45 20-70 30-80 35-110 |
1/2 3/4 1 |
Brass S S PVC |
|
EV- 40 50 |
3-25 5-50 8-80 10-100 |
12-90 20-200 30-280 40-380 |
250-1500 350-2200 450-4500 700-6000 |
15-95 20-140 25-275 45-370 |
11/2 2 |
|
