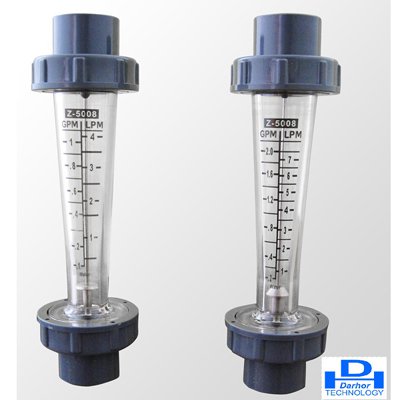

Z5008 flow meter high pressure
DF-4500 Series polysulfone flowmeter
• Designed to be
• Easy to install.
• Chemically resistant molded polysulfone
• Water ranges from 0.1 LPM to 250 GPM
• Capable of withstanding higher temperatures
• Economical and durable
Meter Body: Polysulfone(PSU) or UPVC
Float: 316SS, , PVDF, or Teflon (based on model)
Guide rod: SS316 Stainless (opt. PTFE liner)
Adapters: Polysulfone
O-Rings: Viton
Scale: Permanent, dual scale silkscreen
Max. PSIg: 175 PSIG / 12 BAR at 70¡ãF/21¡ãC
Max. Temp: 212¡ãF / 100¡ãC at 0 pressure
Accuracy: + 4% of full scale reading
|
DF-4500 Series of pipe flow meter |
||||||||
|
model |
Range |
Installation |
% accuracy |
working pressure |
||||
|
(LPM) |
(GPM) |
metric union |
male thread connection |
female thread connection |
elbow connection |
|||
|
|
0.5-4 |
0.1-1 |
20 |
1/2" NPT |
|
|
5 |
0.6MPa |
|
DF-45008 |
1-7 |
0.2-2 |
|
|||||
|
|
1.8-18 |
0.5-5 |
1/2"NPT |
|||||
|
|
0.5-4 |
0.1-1 |
20 |
1/2" NPT |
|
|
||
|
DF-45008C |
1-7 |
0.2-2 |
|
|||||
|
|
1.8-18 |
0.5-5 |
1/2"NPT |
|||||
|
|
1-10 |
0.25-2.5 |
20 |
1/2 or 3/4"NPT |
|
|
||
|
DF-45015 |
1.8-18 |
0.5-5 |
|
|||||
|
|
3-30 |
0.8-8 |
1/2"NPT |
|||||
|
DF-45025 |
3-30 |
0.8-8 |
32 |
3/4" NPT |
3/4" G |
|
||
|
|
4-40 |
1-10 |
3/4"NPT |
|||||
|
|
5-50 |
1.2-12 |
40 |
1" NPT |
1"G |
|
||
|
DF-45032 |
8-80 |
2-20 |
|
|||||
|
|
10-100 |
2.5-25 |
1"NPT |
|||||
|
|
10-100 |
2.5-25 |
63 |
2" NPT |
2" G |
|
||
|
DF-45050 |
20-180 |
5-45 |
|
|||||
|
|
25-250 |
7-70 |
2" G |
|||||
|
DF-45065 |
80-400 |
25-110 |
75 |
2 1/2" NPT |
2 1/2" G |
|
||
|
|
150-650 |
40-160 |
||||||
|
|
200-1000 |
50-250 |
||||||
