DFA series flow meter for water
DFA series flow meter for water
DFA-AT, DFA-T series ( Old model : LZM-ZT )

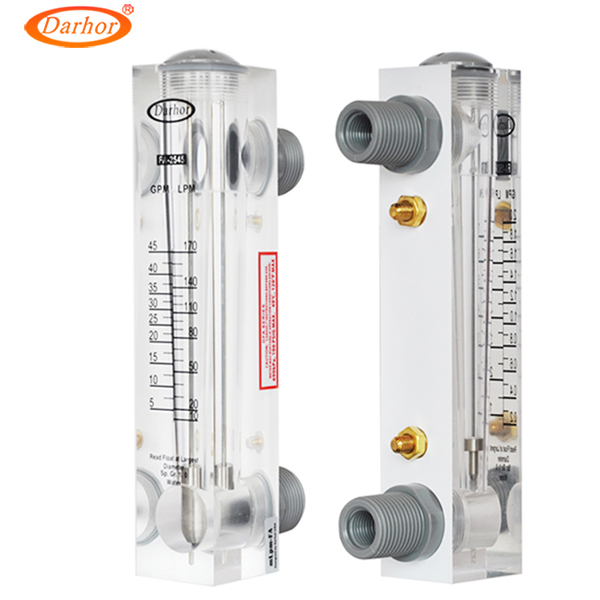

This series flowmeter is clear viewing type with SS valves to adjust the flowrate in
a large measuring range . It is featured in a beautiful look and easy installation.
Specification
|
Model |
Mearsure range |
Screw thread |
Accuracy |
||
|
GPM (liquid) |
LPM (liquid) |
Nm³/h (gas) |
|||
|
DFA-15AT |
|
15-150 LPH |
0.1-1 0.3-3 0.4-4 |
ZG1/2” 1/2”BSPT |
±4% |
|
DFA-15T |
|
10-100 LPH |
0.6-6 1-10 1.6-16 2.5-25 4-40 |
||
|
|
16-160 LPH |
||||
|
|
25-250 LPH |
||||
|
0.1-1 |
0.5-4 |
||||
|
0.2-2 |
1-7 |
||||
|
0.3-3 |
1-11 |
||||
|
0.5-5 |
2-18 |
||||
|
2-10 |
10-35 |
||||
|
4-14 |
15-50 |
||||
|
6-20 |
20-70 |
||||
|
10-35 |
30-130 |
||||
|
10-40 |
30-150 |
||||
|
15-45 |
50-170 |
||||
The outline size of DFA series flow meter
|
Model |
Size (mm) |
|||||||
|
A |
B |
C |
D |
E |
F |
G |
H |
|
|
DFA-15A |
157 |
32 |
150 |
35 |
25 |
60 |
25 |
110 |
|
DFA-15 |
175 |
32 |
168 |
35 |
25 |
76 |
25 |
127 |
|
DFA-25 |
234 |
45 |
226 |
46 |
33 |
100 |
37 |
160 |
The material and code of the parts of DFA flow meter
|
Valve |
fitting |
float |
O-ring |
|
1, SS 2, Brass |
1, ABS 2, PP 3, PVC 4,Brass 5,brass chromeplate 6, SS |
1, SS |
1,silicon rubber 2, Fluorin rubber |
