liquid water flowmeter

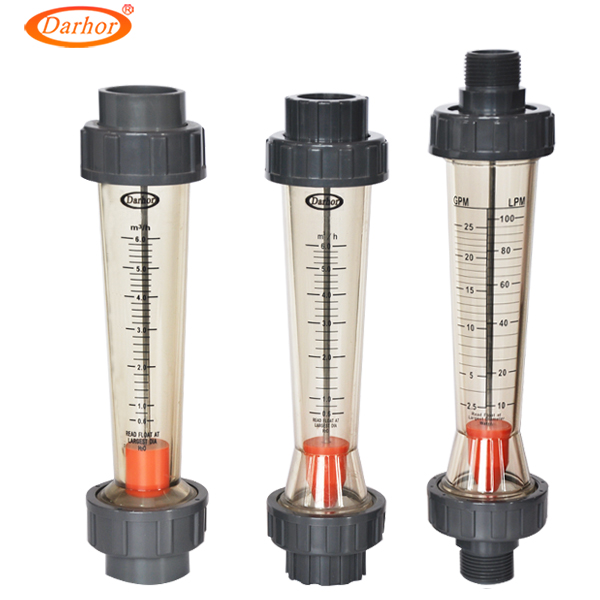

 Variable area flowmeter are made of injection molded, heat and chemically resistant polycarbonate bodies and fittings. Series LFM flowmeters have dual scales measuring in both GPM and LPM with 5% accuracy. A textured background on the body enhances scale readability. Standard in-line models come with 1/2" male NPT connections for LFMA, LFMB & LFMC; 3/4" male NPT connections for LFMD; 1" male NPT connections for LFME; and 2" male NPT connections for LFMF. Panel mount installation is available with 90° elbow fittings that include panel lock nuts. Various other fittings are available.



Datasheet:

Model

DN

Flow Range

Accuracy

Temperature

°C

Pressure

Mpa

GPM

LPM

LZS-15E

15

0.1-1

0.2-2

0.5-5

0.5-4

1-7

1.8-18

±4%

0-60

1-100

≤1

LZS-15G

LZS-15EC

15

0.1-1

0.2-2

0.5-5

0.5-4

1-7

1.8-18

LZS-15GC

LZS-25E

25

0.8-8

1-10

3-30

4-40

LZS-25G

LZS-32E

32

1.2-12

2-20

2.5-25

5-50

8-80

10-100

LZS-32G

LZS-50E

50

2.5-25

5-45

7-70

10-100

20-180

25-250

LZS-50G

LZS-65E

65

25-110

40-160

50-250

80-400

150-650

200-1000

LZS-65G



Dimensions for installation:

Model

L

D

     Joint

  Male

Female

        Elbow

L1

B1

B2

L2

C

L3

E

L4

F

G

A

H

LZS-15E

100

42

150

20

26

170

1/2” BSP

1/2”NPT

/

/

155

52

27

13

1/2” BSP

1/2”NPT

LZS-15G

LZS-15E

160

50

210

20

26

225

1/2” BSP

1/2”NPT

210

1/2” BSP

1/2”NPT

220

56

27

13

1/2” BSP

1/2”NPT

LZS-15G

LZS-25E

170

59

230

32

39

250

3/4”NPT

225

3/4” BSP

3/4”NPT

270

70.5

28

20

3/4” BSP

3/4”NPT

LZS-25G

LZS-32E

225

72

290

40

49

310

1”NPT

290

1” BSP

1”NPT

345

86

35

26

1” BSP

1”NPT

LZS-32G

LZS-50E

290

98

375

63

73

400

2”NPT

370

2”NPT

440

109

40

45

2” BSP

2”NPT

LZS-50G

LZS-60E

325

120

420

75

89

445

3/2”NPT

420

3/2”NPT

/

/

/

/

/

LZS-60G

 lzs new

flowmeter,flow meterflowmeters

Thank you for your attention and inquiry!


Related Products

LZS series anti-corrosive rotameter

LZS series anti-corrosive rotameter

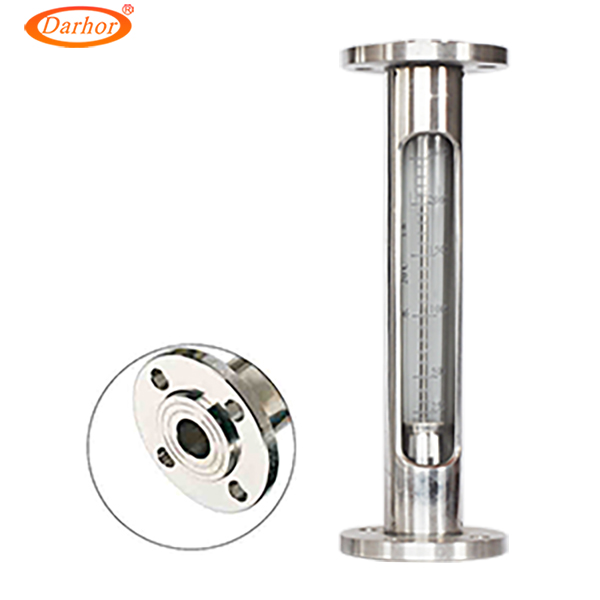

FA30 Variable area flowmeter for liquid, gas

FA30 Variable area flowmeter for liquid, gas

VA30 Variable area flowmeter

VA30 Variable area flowmeter

LZS sea water flow meter

LZS sea water flow meter

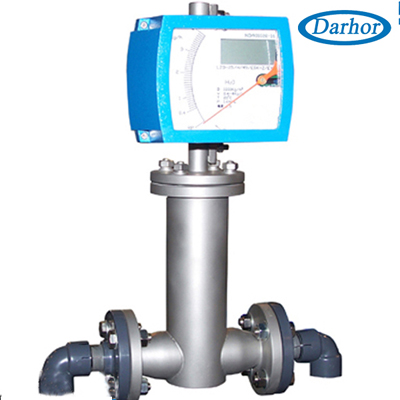

area flowmeter DH250 Series
