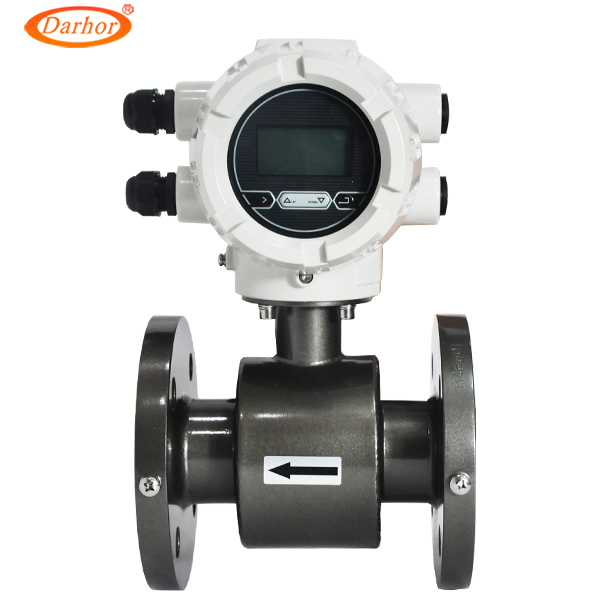

DH1000 electromagnetic flowmeter
Reliable, High Accuracy Flowmeter water Applications.
Feature:
1．Smart design, enabling display of medium flow direction and empty tube
2．signal;
3．Two styles featured: compact and separate type.

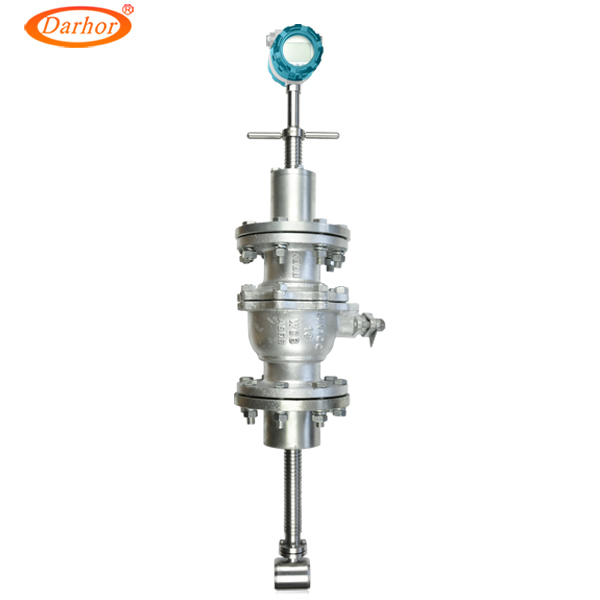

4．Coming available in multiple models, such as tube-shaped and insertion model.
Powered by AC or DC in smart way, in two-wire mode, or using lithium cell.
5．Wide flow range (30:1) and low initial flow rate for measurement (0.2m/s);
6．Adoption of EEPROM, ensuring impregnably secure storage of measurement & calculation data;
7．Displaying second, minute, hour, day, month and year;
8．Equipped with the communication interface RS-485 compatible with the protocol MODBUS
and the HART compatible communication interface;
9．Simplified and tested structure; without movable parts and no intercepting or choking parts,
thereby guaranteeing absence of pressure loss or fluid blockage;
10．Nonexistence of mechanical inertia leading to rapid response and excellent stability;
capable of being applied in automatic detection, adjustment and program control system;
11．Accuracy in measurement not subject to the kind, temperature, viscosity, density, pressure and
other physical properties of the medium;
12．Diverse mixes of polytetrafluoroethylene or rubber linings and electrode materials
(e.g. Hc, Hb, 316L and Ti etc.) adapting the product to various media;
13．Suitable for measuring a variety of corrosive fluids, including strong acid, strong alkali, and
saline solution etc.;
Structure:
Data sheet
<
| Technical Performance Parameters | |||
| Caliver | DN3~DN3000mm | ||
| Nominal Pressure | 0.6~4.0MPa(special pressure can be made to) | ||
| Accuracy | ±0.5%,±0.3%or±0.2% are selectable | ||
| Liner material | Teflon,PFA,F46,Neoprene,Polyurethane | ||
| Electrode Type | General type ,scraper type and replaceable type | ||
| Electrode material | Stainless steel SUS316,Hastelloy C,Titanium,Tantalum Platinum-iridium,Stainless steel covered with tungsten carbide | ||
| Medium Temperature | Integral type | -20°C~+60°C | |
| Remote type | Neoprene & Polyurethane Liner | -10°C~+80°C | |
| PTFE Liner /PFA Liner /F46 Liner | -10°C~+160°C | ||
| Ambient Temperature | -25°C ~+ 60°C | ||
| Ambient Humidity | 5~100%RH(relative humidity) | ||
| Medium Electrical conductivity | ≥5μ s/cm | ||
| Measuring Range | 1500:1,flow rate<15m/s | ||
| Structure type | Integral type,remote type,submersible type,ex-proof type | ||
| Protection Class | IP65,IP68(optional) | ||
| Ex-proof Mark | ExmdⅡT4 | ||
| Product Standard | JB/T 9248-1999 Electormagnetic Flowmeter | ||
Model details:
