VASAFA20 glass tube rotameter for liquid, gas
VASAFA20 glass tube rotameter for liquid, gas
These models are manufactured the same as the special technique and equipment of
KROHNE company in German.In addition to the mm graduation scale and percentage scale
on the glass cone, a replaceable scale with flow units can on request be fitting to the housing.

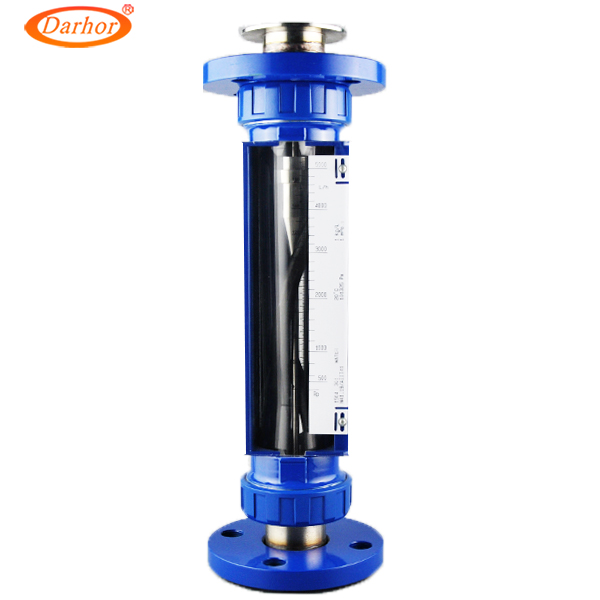

VA20 have screw connection, FA20 have flange connection, SA20 have hose connedtion.
Technical parameter:
1.Measuring range: Water (20 ) 4 15000L/h
Air (1.013×105Pa, 20 ) 0.12300m3/h
2.Range scale: 10: 1
3.Accuracy: 1.0; 1.6
4.Tube: NG60 (no-oriented)
FG60 (oriented)
Specfication :
|
DN (mm) |
Model |
Measuring range |
||
|
Basic |
Corrosive rsistant |
Water20 L/h |
Air101325Pa ,20 m3/h |
|
|
15 |
VA20-15 |
VA/SA/FA20-15F |
4-40 6.3-63 10-100 12-120 16-160 20-200 25-250 30--300 36-360 40-400 46-460 63-630 65-650 75-750 |
0.12-1.2 0.2-2 0.3-3 0.4-4 0.5-5 0.6-6 0.8-8 0.9-9 1.2-12 2-20 |
|
25 |
VA20-25 |
VA/SA/FA20-25F |
40-400 50-500 63-630 80-800 100-1000 120-1200 160-1600 200-2000 250-2500 300-3000 |
1.6-16 2-20 2.5-25 3-30 4-40 5-50 6-60 |
|
40 |
VA20-40 |
VA/SA/FA20-40F |
160-1600 200-2000 250-2500 300-3000 400-4000 400-4000 500-5000 |
5-50 6-60 8-80 9-90 12-120 |
|
50 |
VA20-50 |
VA/SA/FA20-50F |
250-2500 300-3000 400-4000 400-4000 500-5000 630-6300 800-8000 1000-10000 1500-15000 |
10-100 12-120 16-160 20-200 30-300 |
