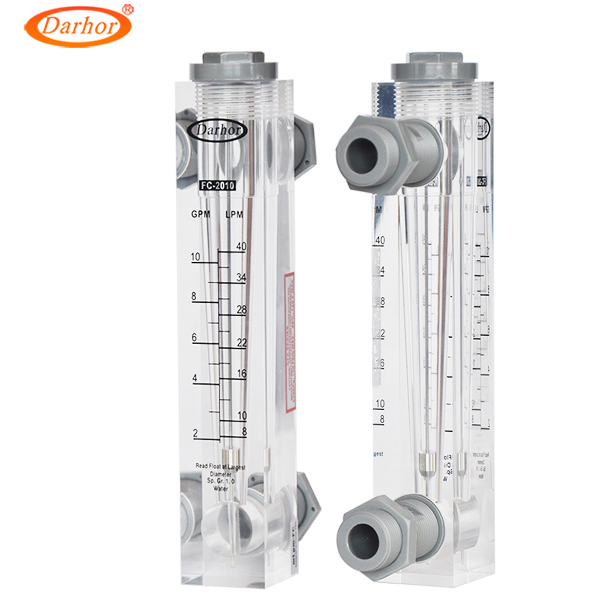

DFC series rotameter panel mount
DFC Series ( old model : LZM-J)
DFC series flow meter derive from DFB series flow meter, it has been lengthen ,
which is installed on the panel, the customer will fix it by hexagonal nut on the fitting..
The measure range of DFC and DFB is the same.
Technical parameters of DFC series flow meter:
|
Model |
Measure range |
Screw thread |
Accuracy |
||
|
GPM (liquid) |
LPM (liquid) |
Nm³/h (gas) |
|||
|
DFC-15 |
0.1-1 |
0.5-4 |
1-10 1.6-16 4-40 |
ZG1/2” 1/2” BSPT |
±4% |
|
0.2-2 |
0.8-8 |
||||
|
0.5-5 |
2-18 |
||||
|
1-7 |
2-28 |
||||
|
1.5-9 |
400-2000 LPH |
||||
|
DFC-20 |
2-10 |
8-40 |
6-60 16-80 |
ZG3/4” 3/4”BSPT |
|
|
2-16 |
8-60 |
||||
|
2-20 |
8-80 |
||||
|
DFC-25 |
1.5-15 |
6-60 |
20-200 25-250 |
Z 1” G1” 1” NPT 1” BSP |
|
|
3-13 |
10-50 |
||||
|
4-24 |
10-100 |
||||
|
5-35 |
10-130 |
||||
|
5-45 |
20-170 |
||||
The outline size of DFC series flow meter:
|
Model |
Size (mm) |
|||||||||
|
A |
B |
C |
D |
E |
F |
G |
H |
I |
||
|
DFC-15 |
216 |
32 |
206 |
37 |
33 |
100 |
1/2” |
165 |
30 |
|
|
DFC-20 |
233 |
39 |
220 |
44 |
49 |
100 |
3/4” |
165 |
32 |
|
|
DFC-25 |
253 |
44 |
240 |
50 |
48 |
100 |
1” |
175 |
40 |
|
